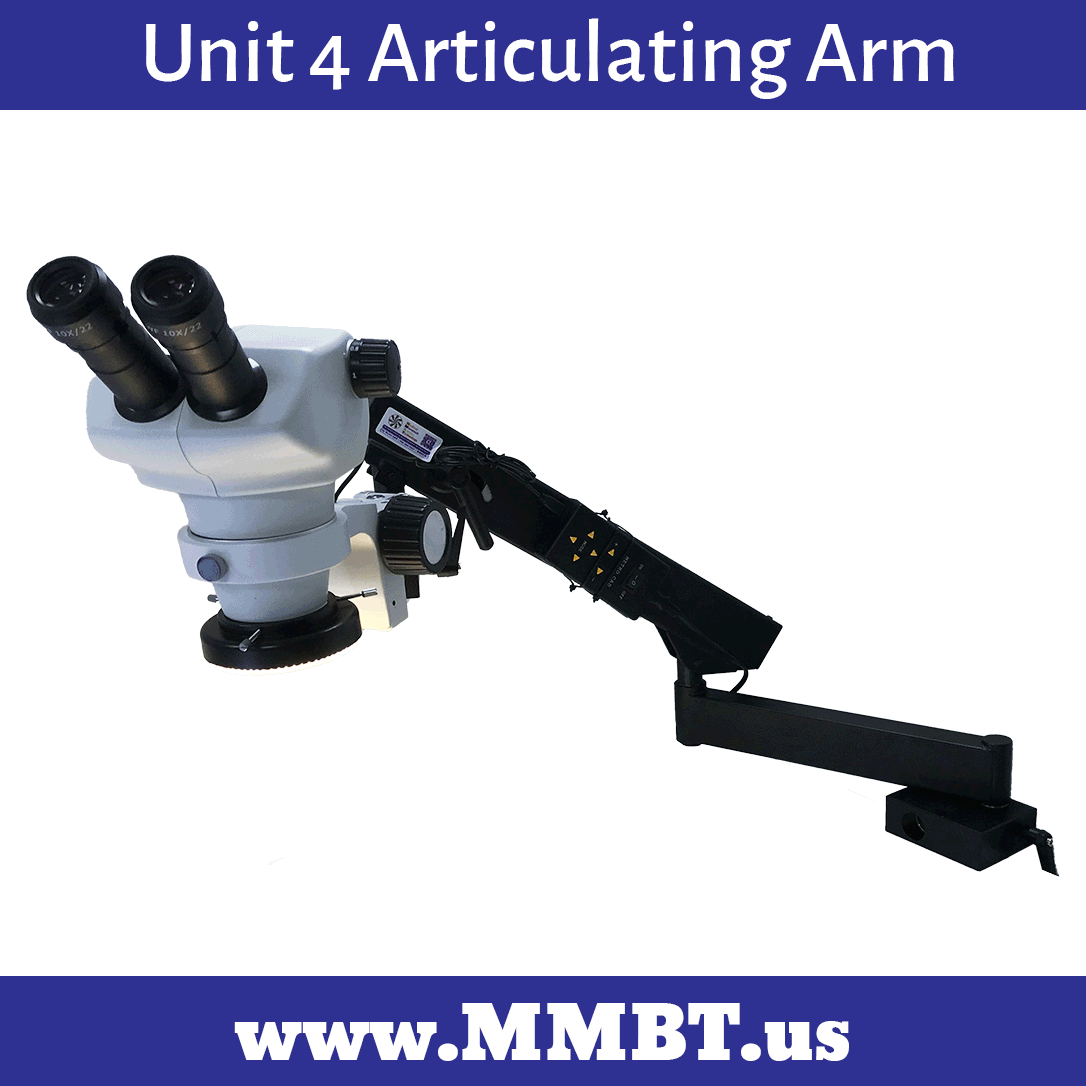

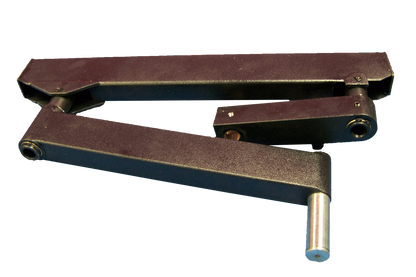

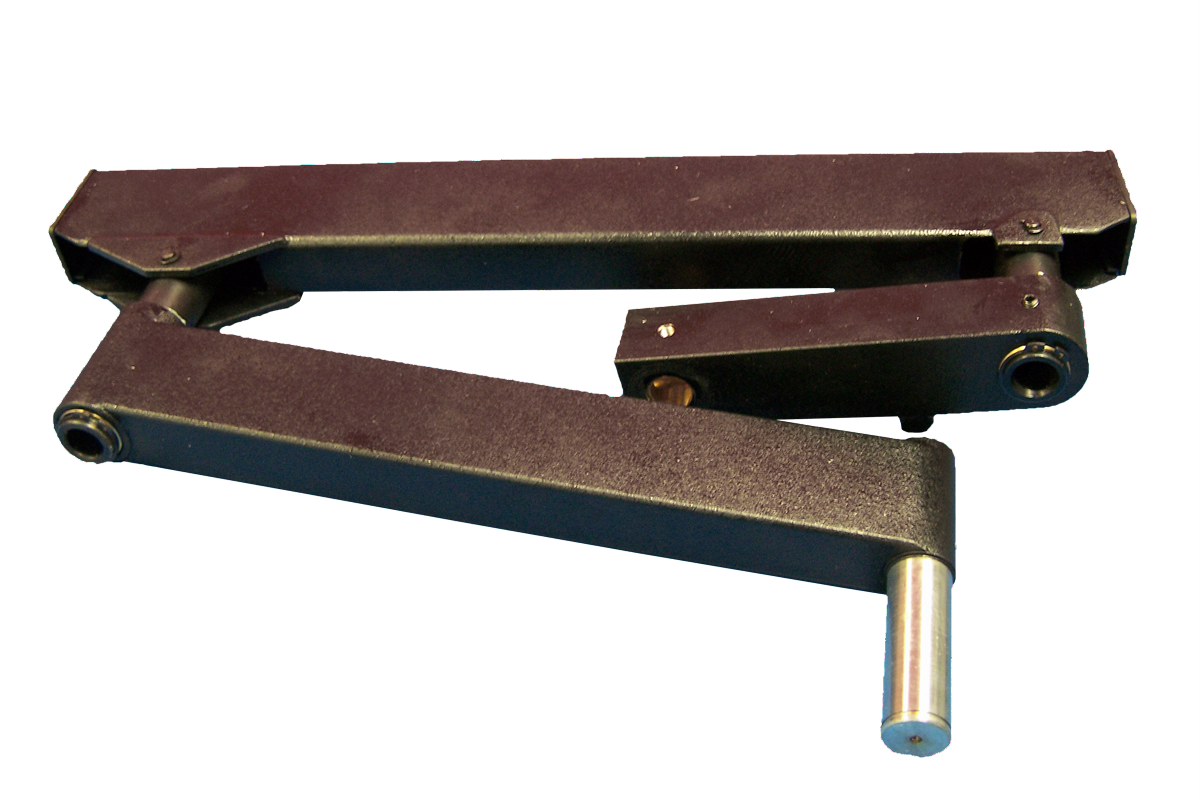

AA-TC Articulating Arm With Clamp

The AA-TC Articulating Arm with Table Clamp provides flexible microscope positioning for precision inspection, assembly, and measurement tasks. Designed for workstations where range of motion matters, the articulating arm extends over the work area and locks into position for clear viewing of fine wire, catheter components, braids, tubing, and small assemblies.

The table clamp mount secures directly to the bench, freeing workspace while allowing the microscope head to move horizontally and vertically around the sample. This setup is ideal for operators who need to inspect multiple areas of a part without constantly repositioning the work piece.

Key features:

• Extended reach over work area
• Bench-mounted clamp for stable installation
• Adjustable arm articulation for precise positioning
• Space-saving design with open work surface
• Compatible with MMBT stereo and digital microscope systems
• Supports production, QC, and R&D environments
• Optional extension bar and accessory upgrades available

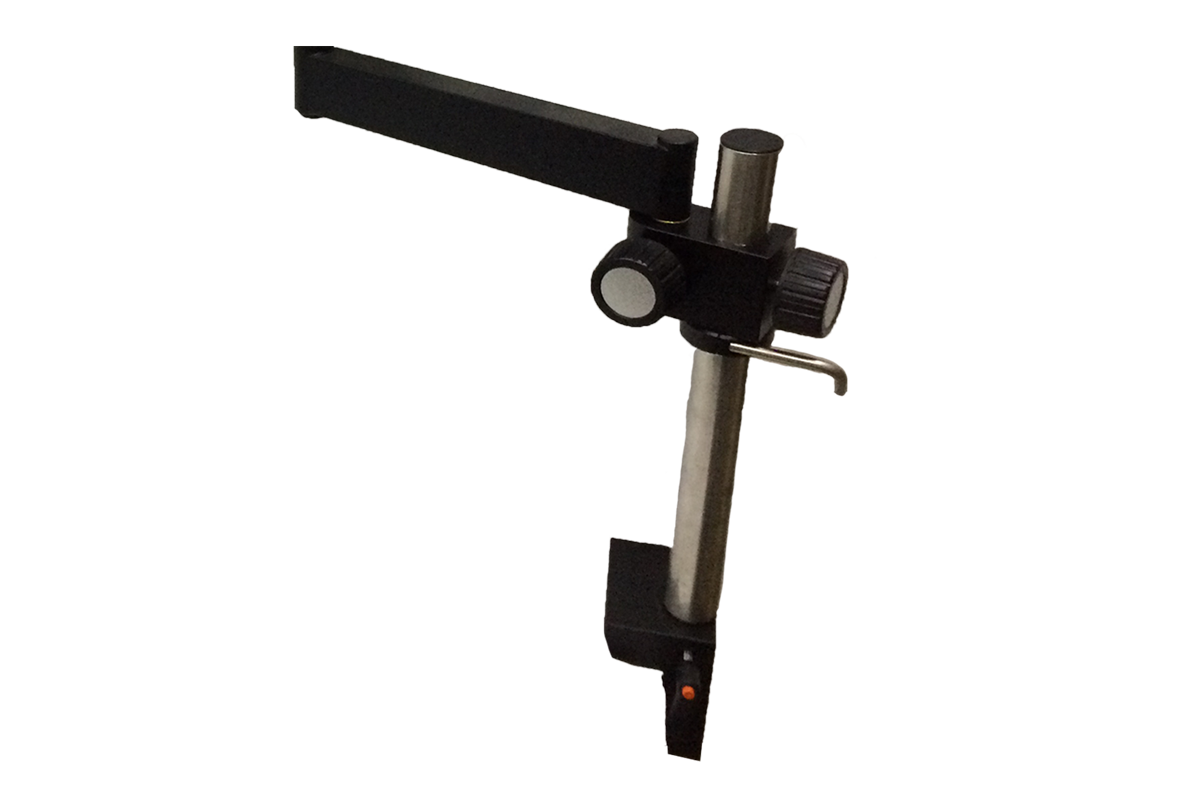

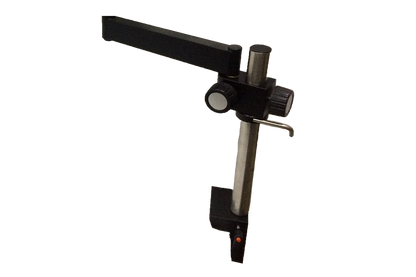

Optional 36cm Extension Bar:

The 36 cm Extension Bar is an add-on accessory designed to increase the reach and vertical working range of compatible articulating arm and microscope support systems. It provides additional clearance and positioning flexibility, allowing operators to access larger or more complex inspection areas without repositioning the sample or workstation setup.

Built for precision inspection environments, the extension bar integrates directly into MMBT articulating arm systems, maintaining rigidity while extending usable range. This makes it especially useful in applications where components vary in size or require multi-angle inspection.

Key Features

• 36 cm added reach for increased working envelope
• Designed for use with MMBT articulating arm systems
• Maintains rigidity and stability during microscope positioning
• Expands vertical and horizontal inspection flexibility
• Simple integration into existing arm assemblies
• Ideal for bench-top manufacturing and QC environments

Applications

• Large or multi-section medical device inspection
• Catheter and guidewire assemblies
• Braided and fine wire structures
• Micro-mechanical component review
• R&D and prototype evaluation
• Production line inspection stations

Performance Benefit

The extension bar increases the overall inspection radius of the articulating system, allowing users to maintain a fixed workstation position while expanding microscope access across wider or taller assemblies. This reduces repositioning time, improves ergonomics, and enhances workflow efficiency in precision manufacturing environments.

It is particularly effective when paired with articulating arms in setups requiring maximum flexibility without sacrificing stability or precision.
